Black Diamond Storm 500-R Review: A Rugged, Rechargeable Headlamp

The Storm 500-R in one line

The Black Diamond Storm 500-R is the burly, weatherproof member of Black Diamond's rechargeable "R-series" lineup. It pairs a 500-lumen output with an IP67 dust-and-water rating and a large integrated battery, which makes it a headlamp built for people who work or play outdoors in genuinely rough conditions rather than for someone who just needs a light to find the fuse box.

If you want the short version of this Black Diamond Storm 500-R review: it is one of the more rugged sealed headlamps in its price class, its runtime on high beats most direct rivals, and its biggest drawback in 2026 is that it still charges over Micro-USB instead of USB-C. The full picture is more nuanced, so here is how the numbers actually shake out.

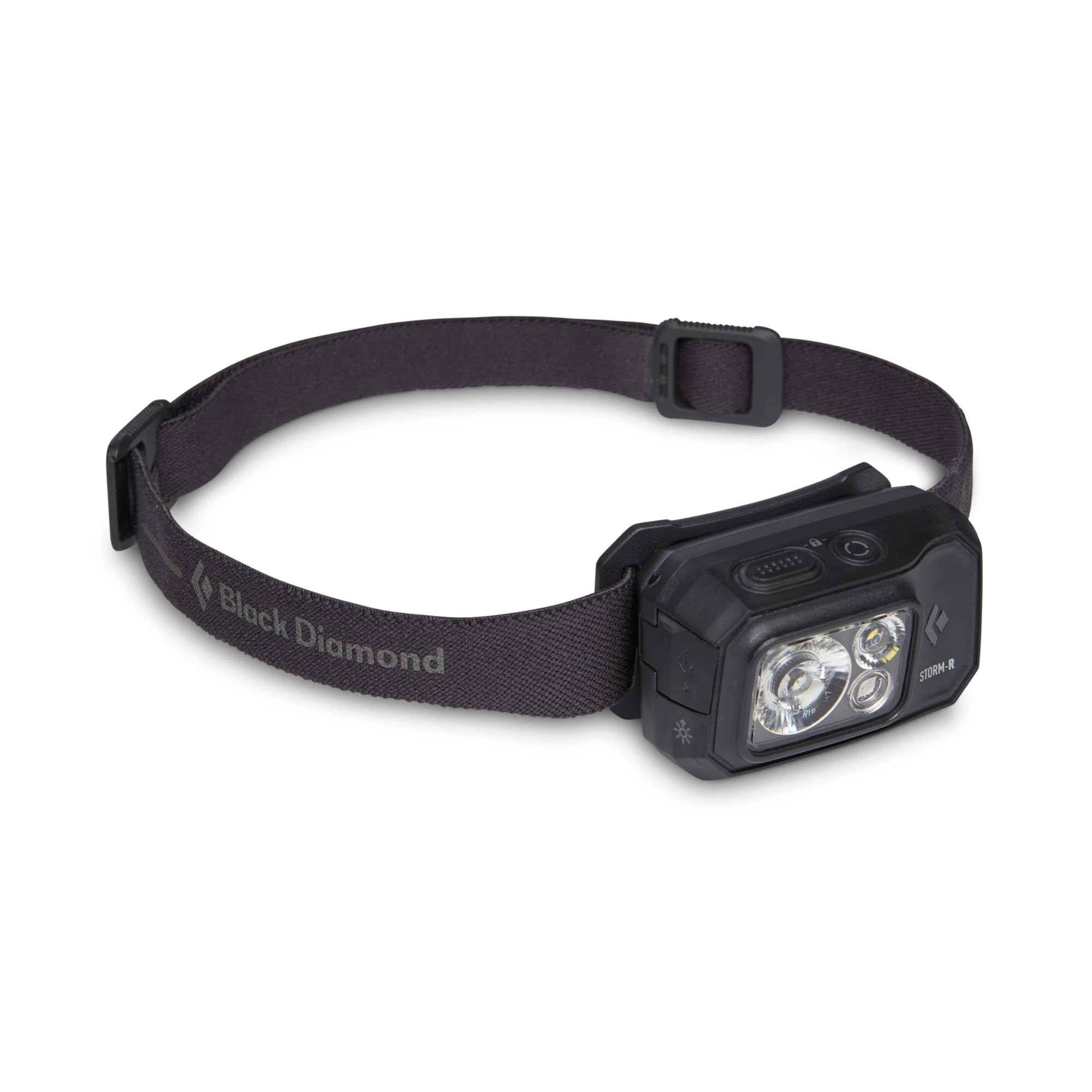

The Storm 500-R keeps a sealed housing and a large integrated battery under a familiar Black Diamond shell.

Black Diamond Storm 500-R specs at a glance

Every number below comes from Black Diamond's own Storm 500-R product page, which is the primary source we anchor spec claims to.

• Max output: 500 lumens on high, 250 on medium, 6 on low
• Max beam distance: 120 m on high
• Battery: integrated 2,400 mAh Li-ion, rechargeable
• Charge port: Micro-USB
• Runtime: 7 hours (high), 19 hours (medium), 350 hours (low)
• Water/dust rating: IP67 (submersible to 1 m for 30 minutes)
• Weight: 120 g
• Warranty: 3 years

Those figures put the Storm 500-R squarely in "do-anything outdoor light" territory. It is not the brightest headlamp you can buy, and it is not the lightest, but the combination of a sealed body, a big battery, and a genuinely usable spread of colored night-vision modes is what the model is known for.

What 500 lumens actually gets you

Five hundred lumens is plenty for camp chores, trail running at a sensible pace, and general around-the-property work, and the 120-meter throw is enough to pick out a trail marker or a reflective eye at distance. If you are still deciding how much brightness you actually need, our companion explainer on how many lumens you need for a headlamp breaks down the tiers by activity so you do not overspend on output you will never use. For most hikers and workers, 500 lumens sits comfortably in the sweet spot.

Battery life and charging

This is where the Storm 500-R earns its keep. The 2,400 mAh cell is large for a headlamp of this size, and it translates into a claimed 7 hours at full 500-lumen output. Drop to the 250-lumen medium setting and Black Diamond rates it for 19 hours, which is enough to cover several nights of realistic camp use between charges.

The catch is the charge port. In 2026, a Micro-USB port on a new-in-box outdoor light feels dated, and it means carrying a second cable if the rest of your kit has moved to USB-C. It is a real inconvenience rather than a dealbreaker, but it is worth knowing before you buy. Independent gear coverage such as the Man Makes Fire Storm 500-R review reaches the same conclusion: strong runtime, aging port.

One nice touch is brightness memory. The Storm 500-R turns back on at the brightness you last used, so you are not blinded by a full 500-lumen blast every time you flick it on in a dark tent.

Waterproofing and durability

The Storm line has always been Black Diamond's weatherproof headlamp, and the 500-R carries an IP67 rating. That means full dust protection and the ability to survive submersion to one meter for 30 minutes. For anyone who has watched a cheaper headlamp die after a heavy rain, that sealed rating is the single most compelling reason to look at this model.

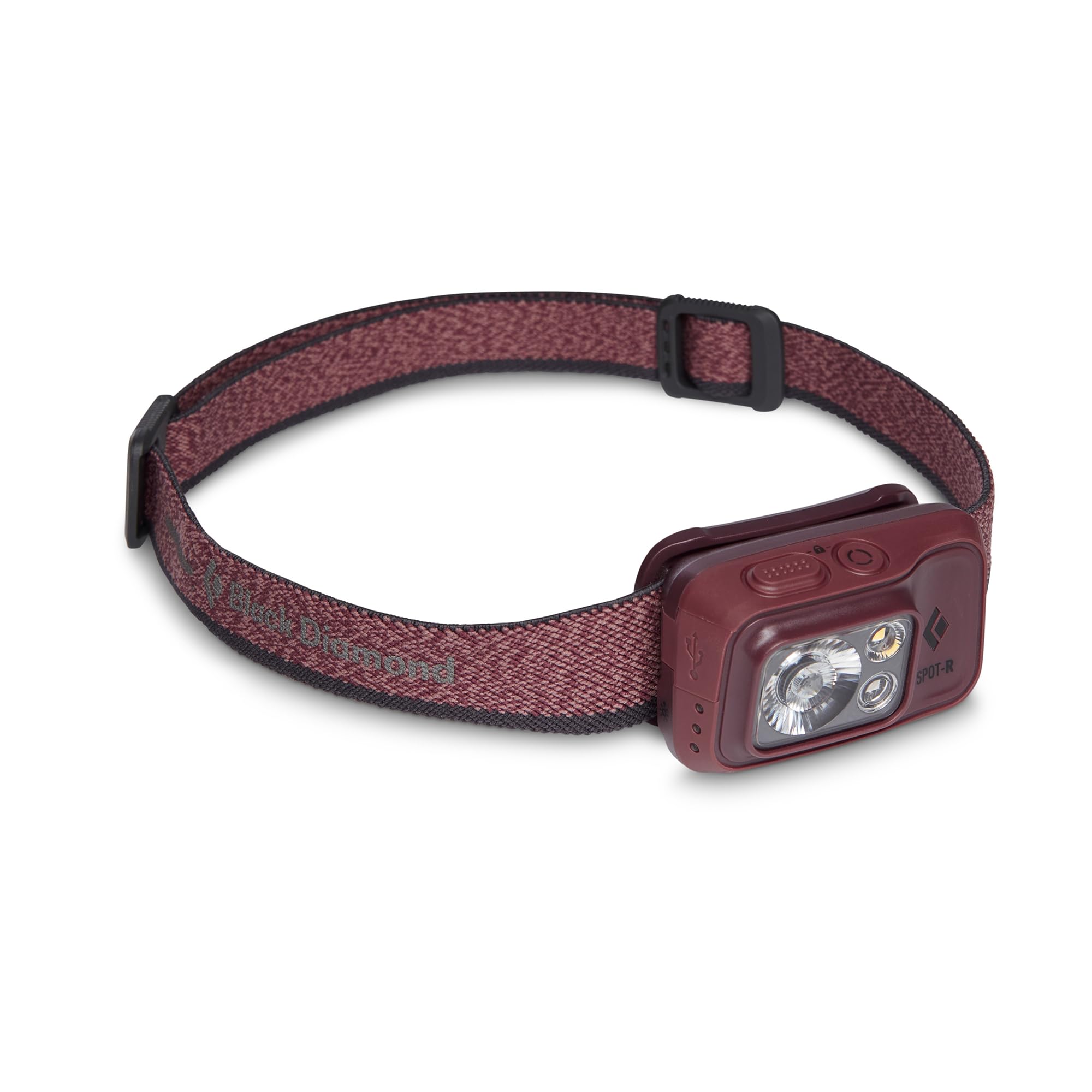

The lighter Spot 400-R shares the same IP67 seal but trades battery size for a slimmer profile.

Black Diamond also includes a patented digital lockout, which prevents the light from switching on and draining in your pack. Combined with the PowerTap feature, a tap on the housing that jumps between full and dimmed output, the control scheme is practical for gloved or fumbling hands in the cold.

Beam, modes, and the little things

Beyond raw brightness, the Storm 500-R offers proximity and distance modes, dimming, strobe, and separate red, green, and blue night-vision colors. The red mode preserves night vision around camp, while green and blue are genuinely useful for map reading and, for hunters and anglers, spotting certain tracks or blood trails without washing out the scene.

The PowerTap surface makes on-the-fly adjustment quick, though some users find it occasionally triggers by accident when the housing gets bumped. It is a minor quirk, not a design flaw.

Black Diamond Storm 500-R vs Spot 400-R

The most common cross-shop is within Black Diamond's own range. The Spot 400-R sits below the Storm, and choosing between them comes down to a simple trade.

The Spot 400-R is lighter and slimmer, with a smaller 1,500 mAh battery and a 400-lumen ceiling, which makes it the more comfortable everyday and three-season choice. The Storm 500-R is heavier at 120 g but carries the bigger 2,400 mAh cell, more output, and the longer runtime that matters on winter nights and multi-day trips. Editorial gear testers broadly frame the pair the same way: pick the Spot for weight and versatility, and the Storm for power and endurance.

If you spend real time out after dark in bad weather, the Storm's extra battery is worth the extra grams. If your headlamp mostly lives in a pack for occasional use, the lighter option will feel better on your forehead.

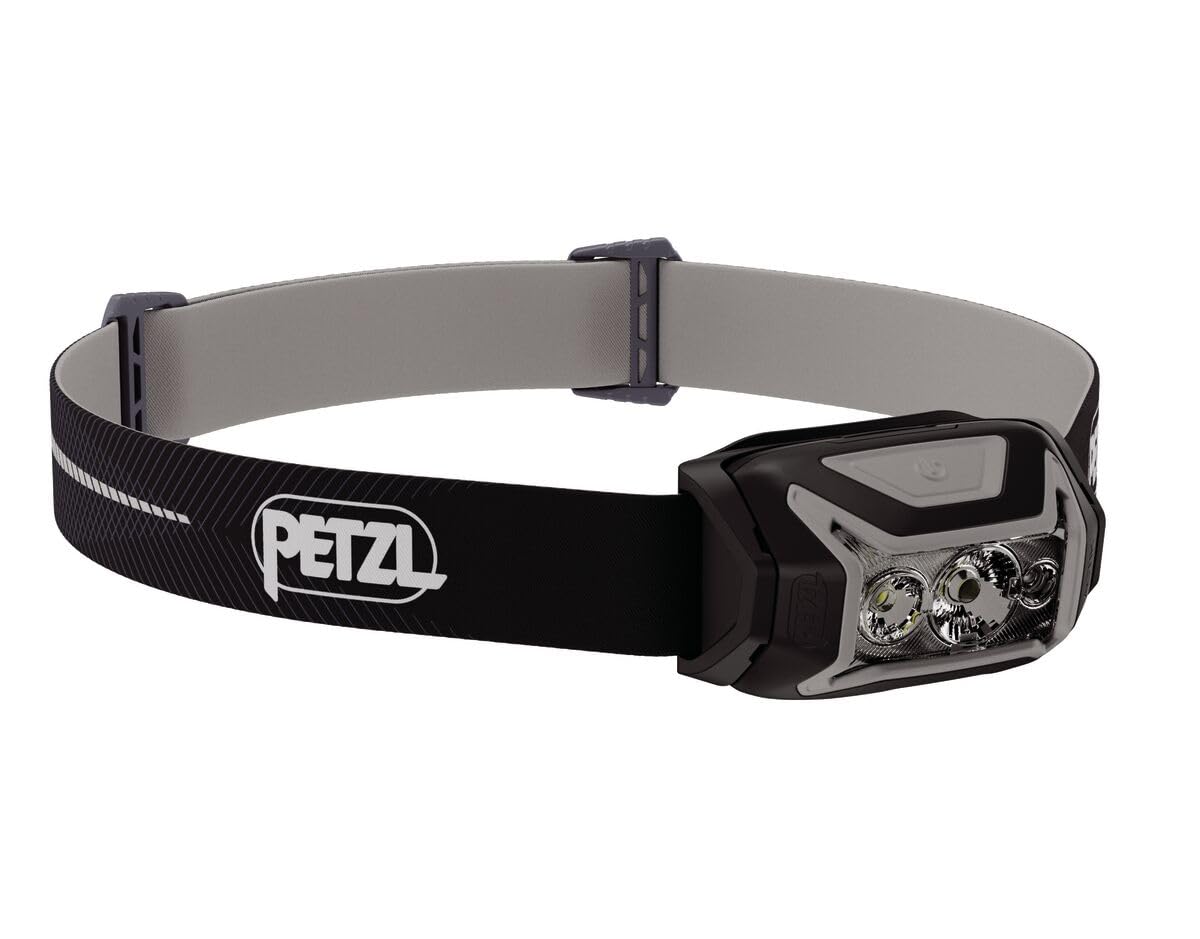

The Petzl Actik Core is a popular hybrid alternative that also accepts AAA batteries in a pinch.

Who the Storm 500-R is for

Buy the Storm 500-R if you want a sealed, high-runtime headlamp for camping, backpacking, hunting, night trail work, or wet-weather jobsite use, and you value dependability over shaving grams. The IP67 seal and long medium-mode runtime are the standout reasons to choose it.

Look elsewhere if you need the absolute lightest option, if USB-C charging is non-negotiable for your kit, or if you want a hybrid that can also run on swappable AAA cells for expedition redundancy. On that last point, the Petzl Actik Core is worth a look, since it accepts AAA batteries as a backup. For a full slate of alternatives across work and outdoor use, see our roundup of the best rechargeable headlamps for work and outdoor, which places the Storm against every major rival.

How we research

Every claim in this review is built from three independent layers of evidence that we cross-check against each other. First, the manufacturer's published specification sheet, which anchors output, runtime, battery, and ingress-protection numbers. Second, reputable third-party editorial and gear-testing coverage, which shows how those specs behave in the field and where the marketing and the reality diverge. Third, the pattern of consistent, verifiable owner-reported issues, which surfaces long-term concerns like port wear or accidental activation.

When those three layers agree, we report the finding with confidence. When they conflict, we say so plainly and default to the primary source. Prices and availability shift constantly, so we deliberately avoid quoting a dollar figure here and focus instead on the specifications and design decisions that do not change. That triangulation is the standard behind every verdict we publish.

Verdict

The Black Diamond Storm 500-R is a rugged, high-runtime headlamp that does exactly what its name promises. Its IP67 sealing and class-leading medium-mode battery life make it a smart pick for serious outdoor and wet-weather use, and the colored night-vision modes add real utility. The only meaningful knock is the dated Micro-USB port. If you can live with carrying one extra cable, this is one of the most dependable sealed headlamps in its class.
